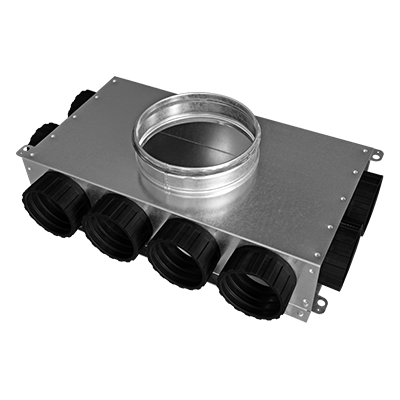

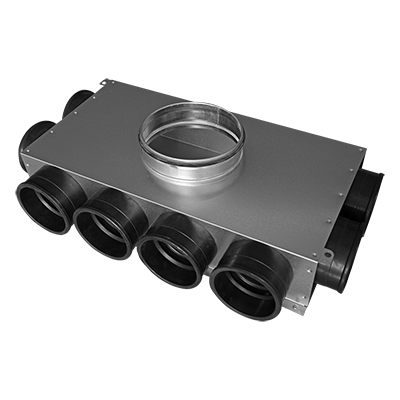

Material:

• galvanized steel;
• rubber o-ring;
• rubber gasket;
• mounting brackets made of galvanized steel.

Product characteristics:

• clever design of the internal components to minimise air resistance;
• 45 mm long connection fitted with a gasket;
• the sheet is joined with special seams, which do not damage the zinc layer;
• connecting a pipe to the nozzles is quick thanks to an innovative solution - inserting a rubber o-ring into a special slot on the nozzle;
• box-mounted and gasket-fitted nozzles (also with inlet connection);
• 20 mm wide swivel mounting brackets.

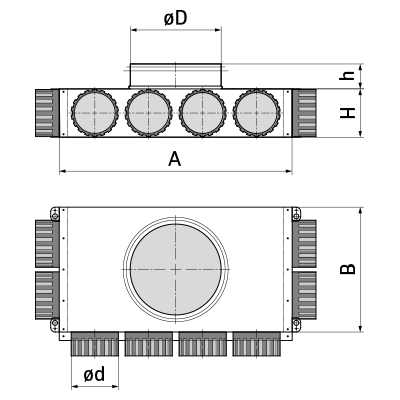

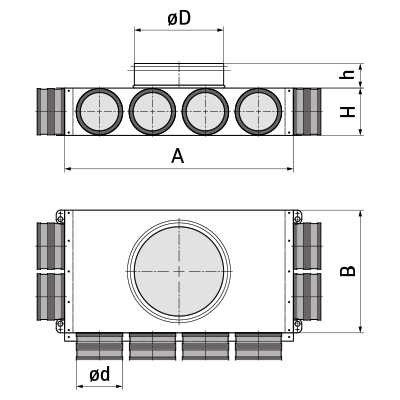

	Number of connectors	øD [mm]	ød [mm]	A [mm]	B [mm]	H [mm]	h [mm]
SR-RKJ8 75/160	8 (2-4-2)	160	75	400	210	85	45
SR-RKJ10 75/200	10 (2-6-2)	200	75	590	240	85	45
SR-RKJ12 75/200	12 (3-6-3)	200	75	590	307	85	45
SR-RKJ 8 90/160	8 (2-4-2)	160	90	470	255	102	45
SR-RKJ 10 90/200	10 (2-6-2)	200	90	702	255	102	45
SR-RKJ 12 90/200	12 (3-6-3)	200	90	702	371	102	45
