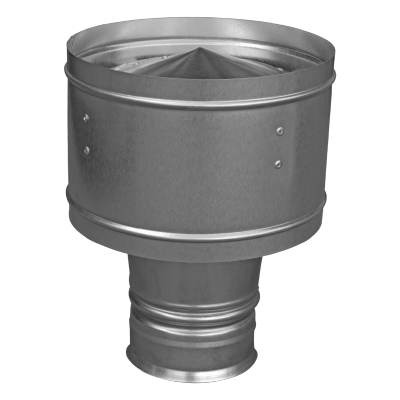

Round gravity ventilator WDC

Air intake / exhauster and ventilation caps > Round gravity ventilator WDC
Air intake / exhauster and ventilation caps > Round gravity ventilator WDC
  • Air intake / exhauster and ventilation caps > Round gravity ventilator WDC
  • Air intake / exhauster and ventilation caps > Round gravity ventilator WDC
« previous product back to category next product »
« previous back next »

Material:

  • galvanized steel.

Product characteristics:

  • universal connection (for pipe, female, or male coupling*);
  • as an option - can be produced with VKPK flange.

* extended male coupling according to PD-B dimensions.

ød
[mm]		 øD
[mm]		 h
[mm]		 H | VKPK*
[mm]		 H | RZ / NP**
[mm]		 Packaging
[pcs | type]
100 200 150 280 315 6 P6
125 250 170 305 330 6 P4
160 320 210 375 400 2 P6
200 400 270 425 485 3 P2
250 500 286 540 595 3 P1
315 630 370 665 725 2 P1
355 710 395 685 740
400 800 435 810 865
500 1000 595 1040 1095
630 1260 685 1240 1280

* version with VKPK flange
** for pipe / male coupling version

Tolerance of linear dimensions: ±2 mm.
