Plenum box SR-T1

Plenum boxes > Plenum box SR-T1 Plenum boxes > Plenum box SR-T1
Plenum boxes > Plenum box SR-T1 Plenum boxes > Plenum box SR-T1
  • Plenum boxes > Plenum box SR-T1
  • Plenum boxes > Plenum box SR-T1
  • Plenum boxes > Plenum box SR-T1
  • Plenum boxes > Plenum box SR-T1

Material:

  • galvanized steel;
  • EPDM rubber connectors;
  • rubber gasket;
  • mounting brackets made of galvanized steel.

Product characteristics:

  • clever design of the internal components to minimise air resistance;
  • EPDM rubber connectors;
  • quick and easy fitting of the duct with connectors without the need for additional seals;
  • 45 mm coupling with seal.

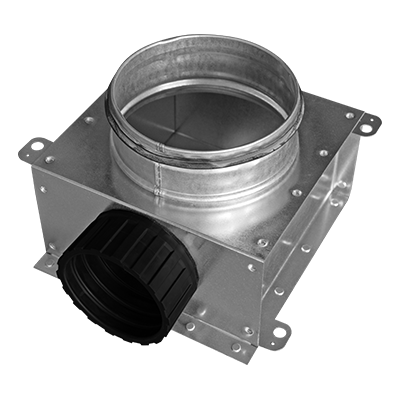

ø75 mm:

  • mounting brackets integrated into the housing, enabling two different installation methods: with bolts
    or screws;
  • mounting brackets on two sides of the box – at the bottom and at the top;
  • sheet metal joined by overpressing.

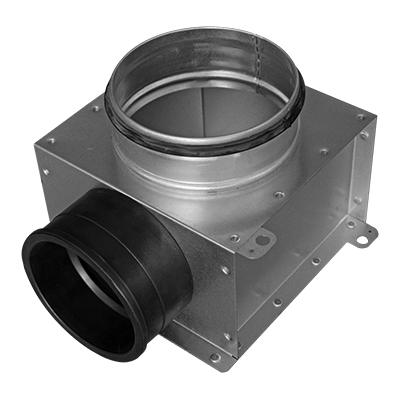

ø90 mm:

  • 20 mm wide swivel mounting brackets, which can be fixed on 2 sides of the box;
  • sheet metal connection via rivets.

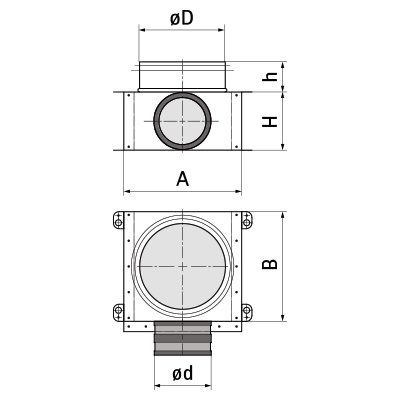

Number of connectors øD
[mm]
ød
[mm]
A
[mm]
B
[mm]
H
[mm]
h
[mm]
SR-T1  75/125 1 125 75 170 160 85 45
SR-T1  90/125 1 125 90 160 160 102 45
