Lightweight flexible, thermally insulated duct designed for the installation into the ventilation and air conditionig systems.

Material

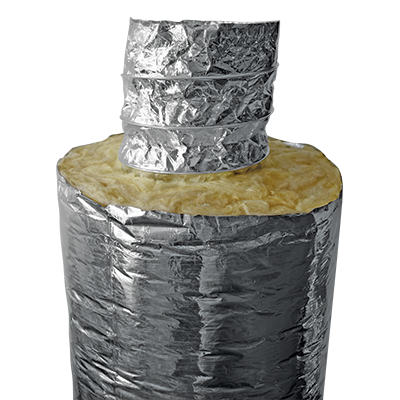

Termomax 75 the duct is made from perforated Alutex as the basic duct, thermal insulation of glass wool 75 mm thick and external jacket made of polyester laminated with aluminium foil. Due to its exceptional flexibility it is easy to install on circular and oval connectors.

Product construction:

• inner core: multilayer of aluminium and polyester;
• insulation: a glass wool with 75 mm thick;
• outer core: multilayer of aluminium and polyester;
• polyester barrier between insulation and inner duct.

Properties:

• good flexibility;
• good compression;
• reduction of noise.

Standard length:

• 5 m.

Classification:

• EN 13501:1 – B-s1, d0;
• the Termomax 75 fullfils all the requirements and are classified as specified within EN 13180: Ventilation for buildings – Ductwork – Dimensions and mechanical requirements for flexible ducts.

øD [mm]	Packaging [pcs/pallet]
127	32
160	18
203	15
